# Usage Guide

This guide explains how to run applications that use `/dev/uinput` (like [Sunshine](https://github.com/LizardByte/Sunshine)) inside containers using **`vuinputd`**.
You’ll learn how to connect your container to the host’s input proxy, configure permissions, and verify that input devices are visible and functional inside the container.

---

## 1. Overview

`vuinputd` allows unmodified apps that use `/dev/uinput` to run safely inside containers.
It provides each container with a **virtual `/dev/uinput`**, while a **host-side daemon** mediates all access to the real uinput subsystem.

This guide shows how to:

1. Run a container (Docker, systemd-nspawn, or LXC/LXD)
2. Connect it to the host’s virtual `/dev/uinput`
3. Verify that device creation and input forwarding work correctly

### Runtime Artifact Placement

`vuinputd` supports different **placement modes** that control where runtime artifacts
(device nodes *and* associated udev data) are created.

This is configured via the `--placement` command-line option and affects:

* the virtual input device nodes
* the corresponding `/run/udev` runtime data used by libudev-based applications

### Device Policies

`vuinputd` can enforce **device policies** that control which input capabilities
and events are exposed to applications.

Policies are applied at device creation time and operate independently of
container runtime or placement mode.


---

## 2. Prerequisites

Before continuing, ensure the following:

* `vuinputd` is **installed and running** on the host
  → see [docs/BUILD.md](BUILD.md)
* You have **root access** on the host (required for mounting and device permissions)
* The host kernel supports:

  * `/dev/uinput`
  * FUSE/`CUSE`
* Optional tools for debugging and validation inside the container:

  ```bash
  apt-get install libinput-tools evtest udev tmux
  ```

---

## 3. Quick Start (Docker Example)

This is the simplest way to verify that `vuinputd` works.

### 🖥️ On the Host

1. Install Docker:

   ```bash
   sudo apt-get install docker.io
   ```

2. Start a test container with `vuinputd`’s virtual device mapped in:

   ```bash
   sudo docker run -it \
       --name vuinput-test \
       --device=/dev/vuinput:/dev/uinput \
       --device-cgroup-rule='c 13:* rw' \
       --mount type=bind,src=<path-to-vuinputd-build>,dst=/build \
       ubuntu:noble
   ```

   *(Replace `<path-to-vuinputd-build>` with your actual build directory)*

3. Test the application

Just run those lines in the container.
```bash
# Allow access for any application
chmod 666 /dev/uinput
# Prepare udev stubs so applications relying on libudev work
mkdir -p /run/udev/data/
touch /run/udev/control
# Run the demo application
/build/release/mouse-advanced
```
The `vuinputd` daemon on the host should provide some logs. The following section "Verifying Operation" describes a more elaborate check and also some screenshots.

4. Optional: To reuse the container later:

   ```bash
   sudo docker start -ia vuinput-test
   ```

5. To clean up:

   ```bash
   sudo docker rm vuinput-test
   ```

---

## 4. Special command line settings

### Placement Modes

`vuinputd` can be configured to place runtime artifacts in different locations depending
on your container setup and isolation model.

#### `--placement in-container` (default)

* Device nodes and udev runtime data are created **inside the container**
* Requires writable `/dev` and `/run` inside the container
* No bind-mounts required
* Best suited for tightly integrated or ephemeral containers

#### `--placement on-host`

* Device nodes and udev runtime data are created **on the host** under:
  * `/run/vuinputd/{devname}/dev-input`
  * `/run/vuinputd/{devname}/udev`
* `/run/vuinputd/{devname}/dev-input` **must** have the mount option `dev`
* The user is expected to **bind-mount these directories** into the container
* Suitable for:
  * read-only containers
  * advanced sandboxing scenarios

#### `--placement none`

* No device nodes or udev runtime data are created
* Useful when:
  * devices are managed externally
  * running in dry-run or control-only mode
  * debugging or testing non-input-related functionality

### Device Policies

Device policies define which input capabilities are allowed and which events
are filtered out for devices created by `vuinputd`.

They are configured using the `--device-policy` command-line option.

#### Available Policies

`--device-policy none`
* Allows **all device capabilities**
* No filtering is applied
* Useful for debugging or trusted environments

`--device-policy mute-sys-rq` (default)

* Blocks **SysRq** key handling
* Allows all other input events
* Prevents accidental or malicious kernel-level hotkeys
* Please read the section 'Handling Phantom Input Events Caused by VTs'

`--device-policy sanitized`

* Allows keyboards and mice
* Filters out dangerous key combinations, including:
  * SysRq
  * Virtual terminal switching (e.g. `Ctrl+Alt+Fn`)
* Recommended for most containerized desktop or streaming workloads
* Caution: This is **experimental**; in case there are combos that should be filtered as well, please post an issue

`--device-policy strict-gamepad`

* Only allows **gamepad-like devices**
* Blocks keyboards and mice entirely
* Intended for:
  * gaming-focused containers
  * sandboxed input forwarding
  * untrusted workloads

### Multiple Independent `vuinputd` Instances

`vuinputd` supports running **multiple independent daemon instances**, each managing its **own virtual uinput device**.
This is achieved by explicitly configuring the device name and (optionally) the major/minor numbers.

This feature is primarily intended for:

* strong fault isolation between containers
* per-container `vuinputd` instances (especially with `--placement on-host`)
* development and testing,
* integration testing with multiple concurrent input stacks

#### Device Identification Options

The following command-line options control the identity of the virtual device created by `vuinputd`:

* `--devname <name>`
  Name of the device node **without** the `/dev/` prefix
  (e.g. `vuinput0` → `/dev/vuinput0`)

* `--major <number>`
  Explicit major device number. Using 0 for both major and minor means auto assign.

* `--minor <number>`
  Explicit minor device number. Using 0 for both major and minor means auto assign.

If not specified, `vuinputd` uses the default device identity `vuinput`.

#### Why This Matters

By default, all containers share the same virtual uinput endpoint.
While this is sufficient for many setups, it couples failure domains:

* a bug or crash in one workload may affect others
* reproducing issues becomes harder when state is shared

Using explicit device identities ensures failures and misbehaving clients are contained per instance.

#### Example: One `vuinputd` Instance per Container (Host Placement)

```bash
vuinputd --placement on-host --devname vuinput-container-a
```

The container would then bind-mount:

```text
/run/vuinputd/vuinput/dev/vuinput-container-a  →  /dev/uinput
```

A second container can run its own instance with a different device:

```bash
vuinputd \
vuinputd --placement on-host --devname vuinput-container-b
```

No state, devices, or udev data are shared between the two instances.


---

## 5. Runtime-Specific Setup

### 🐳 Docker

(As shown above in Quick Start.)

**Key flags:**

* `--device=/dev/vuinput:/dev/uinput` — mounts the fake uinput device
* `--device-cgroup-rule='c 13:* rw'` — allows access to input devices
* Optional: bind your build directory to `/build` for testing binaries

---

### 🧱 systemd-nspawn

1. Install [mkosi](https://github.com/systemd/mkosi):

   ```bash
   sudo apt-get install mkosi
   ```

2. Create an Ubuntu 24.04 image:

   ```bash
   mkosi -d ubuntu -r noble -t directory ubuntu-dir
   ```

3. Launch a container with `vuinputd` bound:

   ```bash
   /usr/bin/systemd-nspawn \
       -M vuinputtest \
       -D ubuntu-dir \
       --network-veth \
       --system-call-filter="@keyring bpf" \
       --bind=/proc:/run/proc \
       --bind=/sys:/run/sys \
       --bind=/dev/vuinput:/dev/uinput \
       --bind=/dev/dri \
       --property="DeviceAllow=char-drm rw" \
       --property="DeviceAllow=char-input rw" \
       --property="DeviceAllow=/dev/vuinput rw" \
       -b
   ```

---

### 🪶 LXC / LXD

Add the following to your container configuration:

```ini
lxc.cgroup2.devices.allow: c 120:414795 rwm
lxc.mount.entry: /dev/vuinput dev/uinput none bind,optional,create=file
```

Then restart the container.

*(Adjust the major/minor numbers to match `/dev/vuinput` on your host — check with `ls -l /dev/vuinput`. In the current release, 120:414795 is hardcoded. This may change in the future.)*

---

## 6. Inside the Container

Once inside the container shell:

```bash
chmod 666 /dev/uinput
apt-get update

# Optional: install test tools
apt-get install libinput-tools udev evtest tmux

# Prepare udev stubs
# Note:
# The following steps are only required when using `--placement in-container`.
# When using `--placement on-host`, the udev runtime data is created on the host
# and must be bind-mounted into the container instead.
mkdir -p /run/udev/data/
touch /run/udev/control
```

---

## 7. Verifying Operation

To test everything, use multiple `tmux` windows for parallel monitoring.

1. Start `libinput` event monitor:

   ```bash
   libinput debug-events
   ```

2. In another window, observe udev events:

   ```bash
   udevadm monitor -p
   ```

3. In a third, run:

   ```bash
   evtest /dev/input/event*
   ```

4. Finally, run the demo binary:

   ```bash
   /build/release/mouse-advanced
   ```

### Expected Results

You should see:

* `libinput` reporting device creation and input events
* `udevadm` announcing a new `/dev/input/event*`
* `evtest` showing input data (e.g. mouse movement)
* `journalctl` on the host showing `vuinputd` logs about device creation and event forwarding

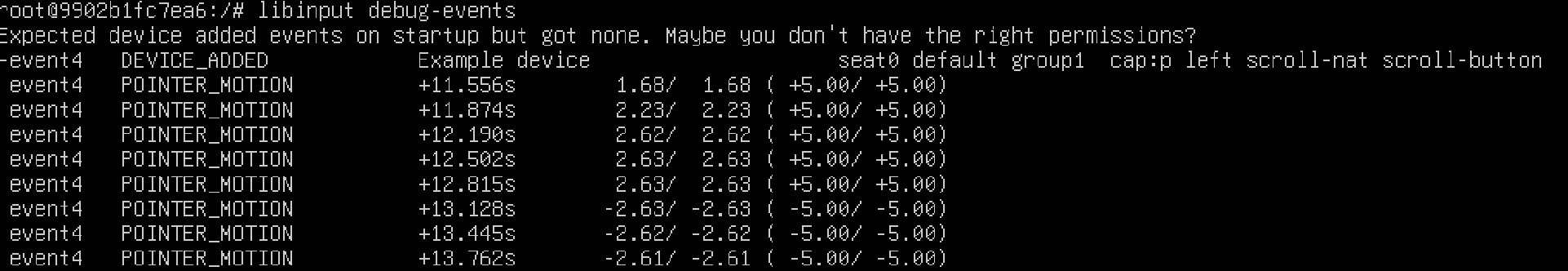

Sample output from `libinput debug-events`:
<img src="libinput.png" width="640"/>

Sample output from `udevadm monitor -p`:
<img src="udevadm.png" width="378"/>

Sample output from `mouse-advanced`:
<img src="mouse.png" width="187"/>

Sample output from `evtest`:
<img src="evtest.png" width="367"/>

Sample output from `journalctl` showing vuinputd output:
<img src="vuinputd.png" width="668"/>

---

## 8. Handling Phantom Input Events Caused by VTs

On Linux systems without an active graphical session (X11 or Wayland), **virtual terminals (VTs)** remain in text mode (`KD_TEXT`) and continue to process keyboard input via the kernel VT keyboard handler.
This can lead to *phantom input events*, where injected or forwarded input (e.g. via `vuinputd`) unintentionally reaches:

* `getty` login prompts
* inactive consoles
* kernel VT hotkeys (e.g. `Ctrl+Alt+Fn`)

The following approaches can be used to prevent or mitigate this behavior.

### Solution 1: Use KMSCON (DRM/KMS-based console)

A robust solution is to replace the kernel VT text console with a **DRM/KMS-based console** such as `kmscon`.

#### How it helps

* The kernel VT is no longer responsible for input handling
* Keyboard input is processed via evdev, not the VT layer
* Seat assignment is respected:

  * devices on non-default seats (e.g. `seat_vuinput`) are ignored
* Phantom input events do not reach `getty`

#### Notes

* Requires DRM/KMS availability
* On most real GPUs, the DRM device remains available even when no monitor is connected and enters a hotplug-waiting state
* For headless systems, a virtual KMS device can be used:

  ```bash
  modprobe vkms
  ```

#### Trade-offs

* Additional dependencies (DRM, kmscon)
* Not always desired for minimal or embedded systems

### Solution 2: VT Guard Mode (`--vt-guard`)

`vuinputd` can be started with the `--vt-guard` flag to explicitly neutralize VT input handling.

#### How it works

At startup, `vuinputd` performs a minimal VT operation such as:

* switching the active VT into graphics mode (`KD_GRAPHICS`), or
* disabling the kernel keyboard processing for that VT

This is done via direct VT ioctls (e.g. `KDSETMODE`), ensuring that:

* the kernel VT keyboard handler is inactive
* `getty` does not receive injected input events

#### Characteristics

* Very lightweight
* No DRM, compositor, or additional services required
* Effective even on fully headless systems

#### Caveats

* Relies on low-level VT ioctls
* Considered **hacky**, but intentionally minimal
* Bypasses higher-level session management

### Solution 3: fallbackdm (Work in Progress)

`fallbackdm` is an experimental, lightweight **logind-integrated fallback display manager**.

#### Intended behavior

* Starts only when no graphical session is active
* Registers a proper `greeter` session with `systemd-logind`
* Takes ownership of a VT and switches it to `KD_GRAPHICS`
* Prevents `getty` and the VT keyboard handler from receiving input
* Leaves other VTs untouched for emergency local access

#### Advantages

* Clean integration with `systemd-logind`
* No direct VT hacks
* Compatible with standard Linux session semantics
* Designed to coexist with real display managers

#### Status

* Currently under development
* Intended as the long-term, principled solution

### Summary

| Solution     | Headless  | Lightweight | logind-aware | Recommended for              |
| ------------ | --------- | ----------- | ------------ | ---------------------------- |
| KMSCON       | ⚠️ (vkms) | ❌           | ✅            | Full console replacement     |
| `--vt-guard` | ✅         | ✅           | ❌            | Minimal setups               |
| fallbackdm   | ✅         | ⚠️          | ✅            | Long-term, clean integration |

Choose the approach that best fits your system constraints and deployment model.


---

## 9. Troubleshooting

| Symptom                     | Possible Cause                       | Fix                                               |
| --------------------------- | ------------------------------------ | ------------------------------------------------- |
| `/dev/uinput` not found     | `vuinputd` not running               | Start `vuinputd` on host                          |
| Permission denied           | Missing `chmod` or wrong cgroup rule | Run `chmod 666 /dev/uinput` or adjust device rule |
| No events in container      | Missing `/run/udev/control`          | Create dummy udev files (see section 5)           |
| Device appears on host seat | udev rules not isolating             | Add udev rules from vuinputd/udev-folder     |
| Input delayed or missing    | CUSE layer error                     | Check host logs via `journalctl -u vuinputd`      |


```
Dez 14 21:33:17 wohnzimmer vuinputd[2172719]: Create /dev/input
Dez 14 21:33:17 wohnzimmer vuinputd[2172719]: [2025-12-14T21:33:17Z DEBUG vuinputd::jobs::inject_in_container_job] Error creating input device /dev/input/event12: Read-o>
Dez 14 21:33:17 wohnzimmer vuinputd[2172719]: thread '<unnamed>' panicked at vuinputd/src/jobs/inject_in_container_job.rs:161:41:
Dez 14 21:33:17 wohnzimmer vuinputd[2172719]: called `Result::unwrap()` on an `Err` value: Os { code: 30, kind: ReadOnlyFilesystem, message: "Read-only file system" }
```

Ensure /dev and /run are writable in the container. If in doubt, use tmpfs.
---

## 10. Notes and Advanced Topics

* You can safely run **multiple containers**.
* Devices are automatically cleaned up when the container stops.
* Works with **Wayland** and **X11** compositors using libinput.
* For deeper details, see:

  * [docs/DESIGN.md](DESIGN.md)
  * [docs/BUILD.md](BUILD.md)

---

## 11. References

* [mkosi manual](https://github.com/systemd/mkosi/blob/main/mkosi/resources/man/mkosi.1.md)
* [Docker device rules documentation](https://docs.docker.com/engine/reference/run/#device-cgroup-rule)
* [libinput tools](https://wayland.freedesktop.org/libinput/doc/latest/tools.html)
